A2B module and EVM kit with 2nd gen A2B support
A2B module and EVM kit with 2nd gen A2B support
A2B module and EVM kit with 2nd gen A2B support

A2B module and EVM kit with 2nd gen A2B support

EVMA2B28-NA
Regular price
$335.00
Regular price
Sale price
$335.00
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

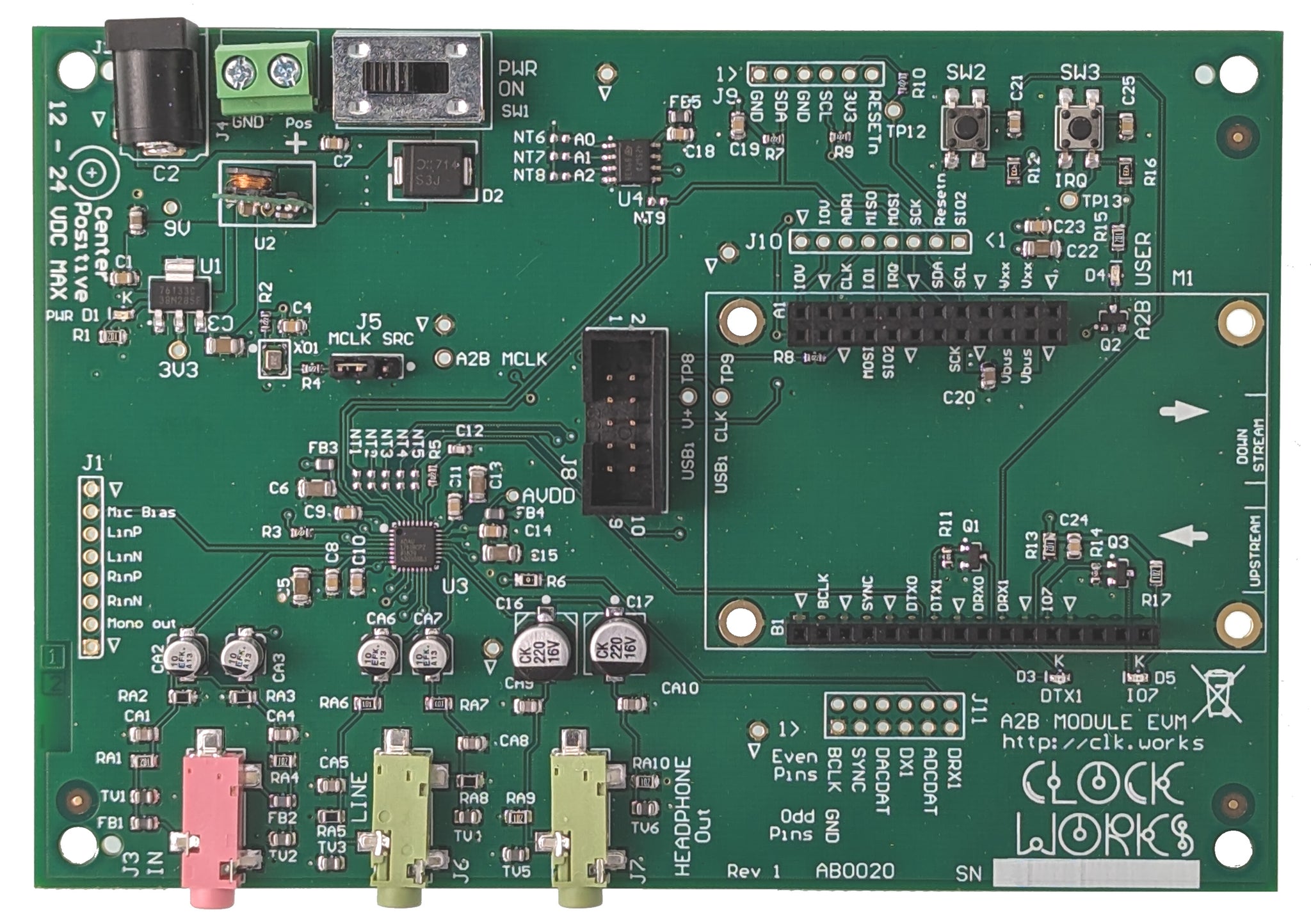

The updated A2B module EVM kit provides a platform for initial software development of A2B applications using the Clockworks A2B modules based on AD2428 or AD2437 devices. It’s also a convenient way to quickly add 2 channel audio input and output to an A2B system for testing.  This model replaces the original EVMA2B01 EVM board.

The EVM supports operation as either an A2B client (slave) node or as an A2B root (master) node. This is the most basic A2B configuration, all you will need to start development is Analog Devices USBi interface unit and their SigmaStudio+ tools for A2B, along with at least a second A2B node.  Two EVMs would provide that, or browse the Clockworks website for other A2B products.

Please note that AD2437 based systems use 24V phantom power and AD2428 based systems use 9V phantom power.  Do not connect them directly or you will release the magic smoke.  Contact Clockworks for more information about mixed device systems.

Single board kits includes EVM, module, 12V or 24V power supply, and a 1m A2B cable. The EVM uses an ADI ADAU1761 SigmaDSP for analog I/O, DSP software can be developed for it with ADI's SigmaStudio tool (SigmaStudio+ does not support this part).

For full details please see the product page on the Clockworks website.

AD2437 based system will have limited availability until April 2024.
